Aluminum NFPA Cylinders



Aluminum cylinders are ideally suited for a variety of industries and applications. They provide lasting, cost-effective solutions to everyday problems. Aluminum is strong and affordable.

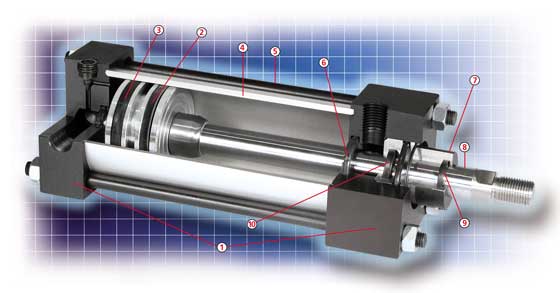

1. Head & Cap
Precision machined from solid aluminum blocks and black anodized.
 		    6. Cushions
Floating cushion seals with captured adjustment needle incorporate extra-fine-thread metering.
2. Piston
Precision machined from high strength aluminum alloy available with an optional magnet for sensors.		 7. Bearing
Precision machined from close grained cast iron and Teflon® coated for lower friction.
3. Piston Seals
Lip type nitrile are pressure activated and wear compensating for long life.		 8. Piston Rod
Precision machined hard chrome plated steel.
4. Cylinder Tube
Precision machined from high tensile, anodized and hard coat I.D. aluminum.
9. Rod Wiper
The tough urethane material removes foreign materials from the rod which extends the seal and bearing life.
5. Tie Rods
High strength steel to maintain compression on tube end seals.

 10. Rod Seal
The tough urethane seal material incorporates a rounded dynamic sealing lip for reduced friction and longer seal life.
